BioHort Neo Shed Smart Base Foundations

Product Description

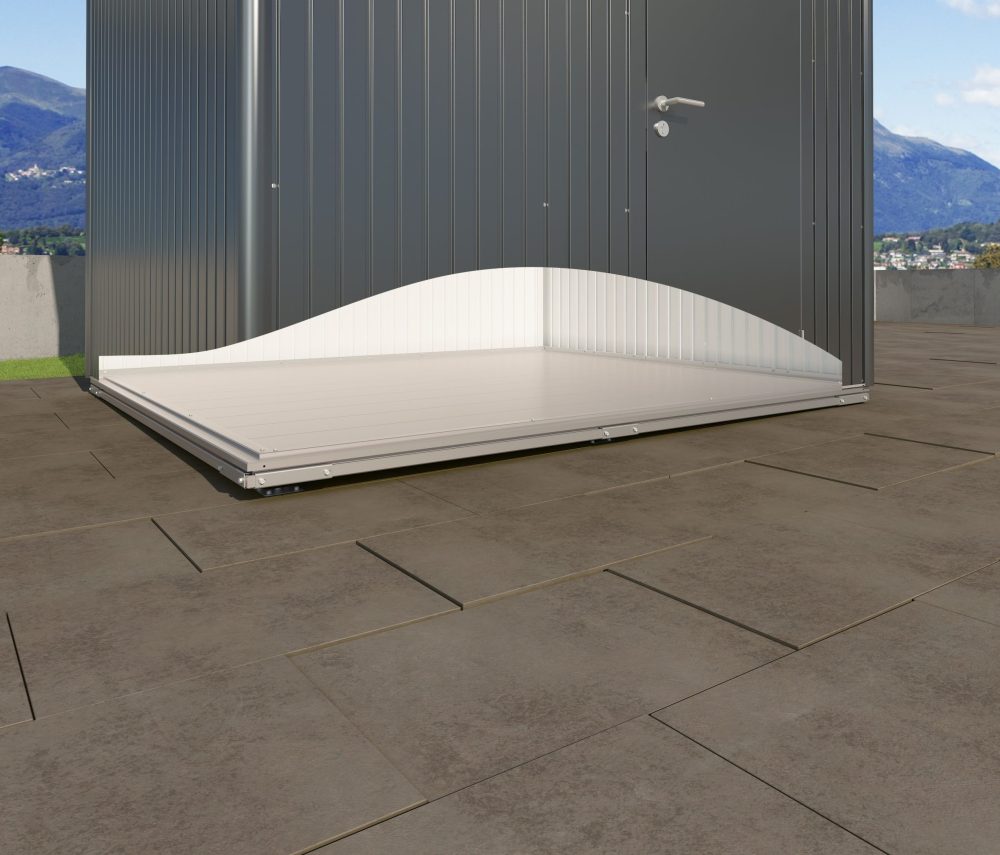

The Biohort SmartBase Foundation is the ideal foundation for concrete or paved areas. It consists of high-quality aluminium boards, a special foundation frame and height-adjustable feet. So light ground irregularities of up to 4 cm can be compensated.

Advantages

Compensation of unevenness through adjustable feet
Easy to remove if necessary
Precisely fitted to all Neo Sheds
Storm proof
Load bearing capacity of max. 200 kg/m2

Standard Equipment:

Aluminium floor boards with grooved surface
Specially designed foundation frame
Galvanised adjustable feet
Adjustable feet with height adjustment
Integrated water barrier to protect against water ingress

Floor frame and floor plates are no longer necessary!

Visit our Installation page for more details on the professional assembly/installation service we have on offer (at an extra cost). Also visit our alternative foundation page to see more foundation options.

Designed for all BioHort Neo Sheds.

This item carries a 20-year guarantee against corrosion.

Dimensions (W x L cm):

Neo 1D & 4A – 334 x 166
Neo 1C & 3A – 278 x 166
Neo 2C & 3B – 278 x 222
Neo 2D & 4B – 334 x 222
Neo 3C – 278 x 278
Neo 3D & 4C – 334 x 278
Neo 4D – 334 x 334
Neo 1A – 166 x 166
Neo 2A & 1B – 222 x 166
Neo 2B – please see Europa for this Smartbase

Time of Assembly: 1 – 2 hours for two (depending on workmanship and product)

Tools (not included in the delivery): spirit level, drill, drill bit Ø 10 mm, open-end spanner SW13 and SW24
